RedCell Blood Grouping Systems
Reliable & Easy & Flexible
- RedCell Blood Grouping Systems are column gel agglutination tests designed to be used easily while offering the highest accuracy and presicion available. Wide variety of gel card selections provides a fitting role for every need. Redcell Biotechnology also offers devices for both manual and fully automatic systems, cell screens, and standardised cells for blood grouping.
- RedCell Blood Grouping Tests are gel column systems that provide easy and reliable blood grouping tests such as ABO grouping, Rh (D) idenfiication, Cross match, Antibody screening, Antibody identification, Rh Subgroup determination (C, c, E, e and K).
- RedCell Blood Grouping Tests are CE marked.
Fully Automated Blood Grouping System
- Test Menu: Blood grouping/ reverse grouping/ phenotyping/ crossmatching/antibody screening and etc.
- Operating mode: Microcolulmn Gel Test
- Sample types: centrifuged whole blood/ packed red blood cells/ 3-5% and 0.8% red cell suspensions/serum or plasma
- Throughput: 48 cards/H
- Pipetting channel: 2
- Sample position: 144
- Card cabins: 96
- Reagent position: 12+2
- Incubation temperature: 60℃（±0.1℃）
- Incubation modüle: 2×12 (24 cards position)
- Centrifuge: 2×12 (24 cards position)
- Reader: 2 Readers for automatically identify samples (Optional) & Microcolulmn Gel test card
- Software: Bi-directional LIS/HIS connection, evaluate and send results
Fully Automated Blood Grouping System
- Test Menu: Blood grouping/ reverse grouping/ phenotyping/ crossmatching/antibody screening and etc.
- Operating mode: Microcolulmn Gel Test
- Sample types: centrifuged whole blood/ packed red blood cells/ 3-5% and 0.8% red cell suspensions/serum or plasma
- Throughput: 36 cards/H
- Pipetting channel: 1
- Sample position: 20
- Card cabins: 12
- Reagent position: 6+2
- Incubation temperature: 60℃（±0.1℃）
- Incubation modüle: 1×12 (12 cards position)
- Centrifuge: 1×12 (12 cards position)
- Reader: 2 Readers for automatically identify samples (Optional) & Microcolulmn Gel test card
- Software: Bi-directional LIS/HIS connection, evaluate and send results
Semi-Automated Blood Grouping Systems
Gel Card Centrifuge
- 24 gel cards capacity
- Audible alarm
- Automatic lid opening system

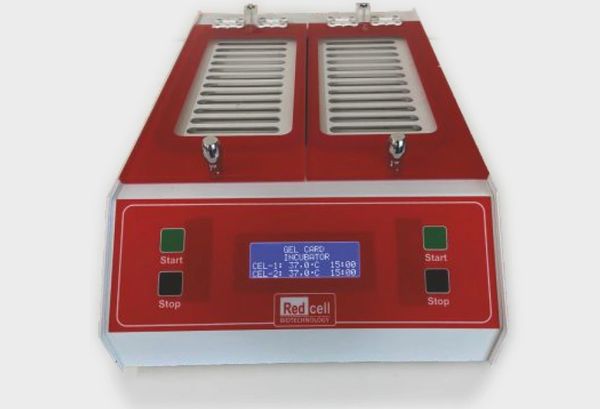

Gel Card Incubator
- 24 gel cards capacity
- Audible alarm
- Two independent heating sections
Gel Card Reader
- Computer connection
- Test result image
- Test result recod
- Test resultscan be send to the automation system or printer
Gel Card Pipetor

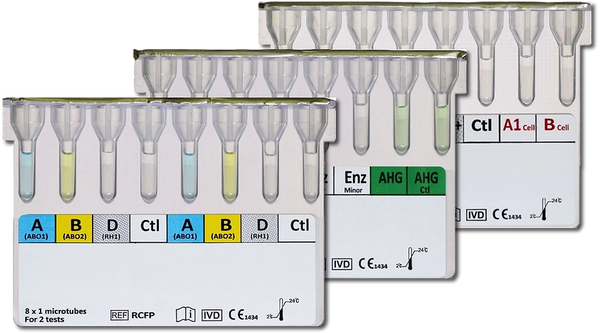

Blood Grouping Gel Cards
Forward ABO Patient
- Enables detection of ABO and Rh D Groups of patient using gel system.
- One card involves 2 tests
- Package: 48 Forward ABO Patient Cards
Forward AB Plus
- Enables detection of ABO and Rh D Groups of patient using gel system.
- One card involves 2 tests
- Includes AB well instead of control
- Package: 48 Forward AB Plus Cards
Forward & Reverse
- Enables detection of ABO,Rh D, DVI and reverse grouping in single card.
- The last two wells are used for reverse grouping with A1/B cells.
- Package: 48 Forward & Reverse Cards
Forward & Reverse Donor
- Enables detection of ABO,DVI and reverse grouping in single card.
- Enables detection of Kell.
- The last two wells are used for reverse grouping with A1/B cells.
- Package: 48 Forward & Reverse Donor Cards
Comp/Cross Match
- Forward grouping and Cross match functionality in a single card.
- Used in antibody determination of the patient serum for donor erythrocytes or donor serum for patient erythrocytes.
- Package: 48 Comp/Cross Match Cards
Rh Phenotype
- Enables detection of Rh subgroups in clinically critical operations.
- One card involves two tests.
- Package: 48 Rh Phenotype Cards
Rh Phenotype Plus
- Enables detection of extended Rh subgroups and Kell in clinically critical operations.
- Package: 48 Rh Phenotype Plus Cards
Newborn
- Enables determination of Newborn ABO, Rh D, DVI Groups.
- Includes Coombs Test
- Package: 48 Newborn Cards
DAT Screen
- Enables the determination and differentiation of IgG sensitized and C3d sensitized erythrocytes in-vivo.
- IgG microwell includes monospesific Anti-IgG.
- C3d microwell contains Anti Human C3.
- AHG microwell contains polyspesific anti-human globulin.
- Package: 48 DAT Screen Cards
DAT Duo
- Enables the determination and differentiation of IgG sensitized and C3d sensitized erythrocytes in-vivo.
- IgG microwell includes monospesific Anti-IgG.
- C3d microwell contains Anti Human C3.
- Package: 48 DAT Duo Cards
Neutral/AHG
- Enables the use of Indirect Coombs Test (IAT), Compatibility Test, Antibody Screening and Antibody identification.
- Package: 48 Neutral/AHG Cards
AHG
- Enables the use of Direct Coombs Test (DAT), Indirect Coombs Test (IAT), Compatibility Test, Antibody Screening and Antibody identification.
- Package: 48 AHG Cards
Neutral Gel
- Neutral Gel Card can be used for Reverse Grouping, Antibody screening, Antibody Identification and Compatibility Tests.
- Package: 48 Neutral Gel Cards
IgG Gel
- Enables the use of Direct Coombs Test (DAT), Indirect Coombs Test (IAT), Compatibility Test, Antibody Screening and Antibody identification.
- All microwells contains monospesific anti-human globulin.
- Package: 48 IgG Gel Cards
A1 Gel
- Enables determination of erythrocytes with A1 antigen.
- Package: 48 A1 Gel Cards
H Gel
- Enables determination of erythrocytes with H antigen.
- Package: 48 H Gel Cards
- Diluent and Solutions
- Bromelin Solution 10 ml & 50 ml
- Papain Solution 10 ml
- LISS Diluent 500 ml
- Red Blood Cells for Antibody Screening and Determining
- Cell Screen 1-2-3
- Cell ID 11
- Red Blood Cells for Reverse Grouping
- OBG Cell Reverse A1, B
