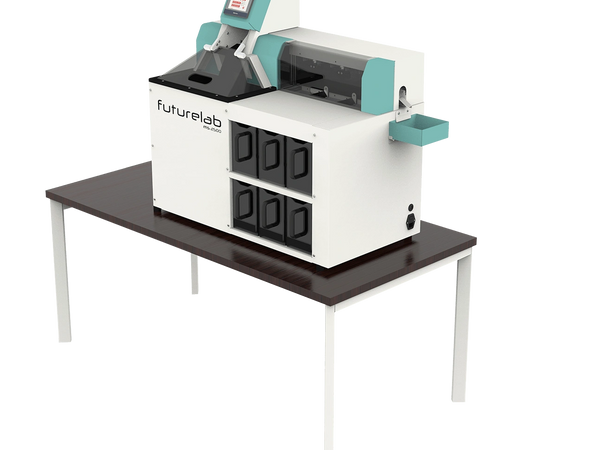

Futurelab MS2500
AUTOMATED MINI TUBE LOADER & SORTER
- The Futurelab MS2500 is a compact desktop sorting system used to load and sort blood collection tubes based on data received from the LIS or HIS. It improves the workflow in clinical laboratories, especially in the pre-analytics stage in the sample entry area, and enables laboratory staff to make their time more efficient and concentrate on their core tasks. With the advantage of its small size, the device offers a perfect solution for small and medium-sized laboratories.
- User interface: Simple operation via the color touchscreen.
- Available Tubes: The Futurelab S2500 Tube Sorter can process and sort all types of primary tubes. Any cylindrical tube with a length of 76 - 120 mm and a diameter of 8 - 19 mm are easily handled by the machine.
- Tube Capacity: Easy and uninterrupted sample loading with a capacity of 400 tubes.
- Decomposition: The defined tubes are transported by a conveyor and then guided to the target drawer with the help of doors. Unidentified tubes are collected in the box at the end of the conveyor.
- Sorting: The defined tubes are transported by a conveyor and then directed to the target drawer with the help of gates. Unidentified tubes are collected in the box at the end of the conveyor.
- Sample Determination: ldentification of tubes takes place through user-defined rules based on cap color (optional) and / or barcode information or rules transmitted by the LIS.
- Small Size: Futurelab MS2500 is the small and compact desktop version of the Futurelab Series tube sorter. Futurelab MS2500 provides a perfect solution for small and medium sized laboratories with its compact structure.
